TRUMPF Folding Tool OW215 / EV-F

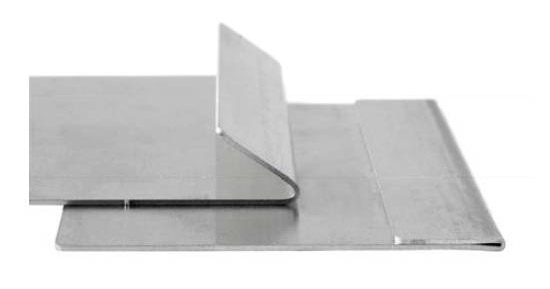

Bending a hem can be a piece of cake

With the Folding Tool OW215 / EV-F, materials up to a sheet thickness of 2mm can be folded with ease. This upper tool is compatible with all 3 folding dies (EV-F) and can be used without the lower tool displacement or a folding table – allowing the tool to be used on TruBend Series 3000 and 7000 machines.

Your advantages at a glance:

• Only one punch for all EV-F dies
• High reliability due to the stop edge on the die
• Large radii on the lower tool possible e.g. for film-coated workpieces
• Short set-up times – punches up to 500mm via Safety-Click
• No I-axis necessary
• Hem folding possible on the TruBend Series 3000 & 7000

 Application:

Punch OW215/K + Die EV-F W6.4 – max. sheet thickness steel: 1.50 mm, stainless steel: 1.25 mm
Punch OW215/K + Die EV-F W8 – max. sheet thickness steel: 1.75 mm, stainless steel: 1.50 mm
Punch OW215/K + Die EV-F W10 – max. sheet thickness steel: 2.00 mm, stainless steel: 1.50 mm
