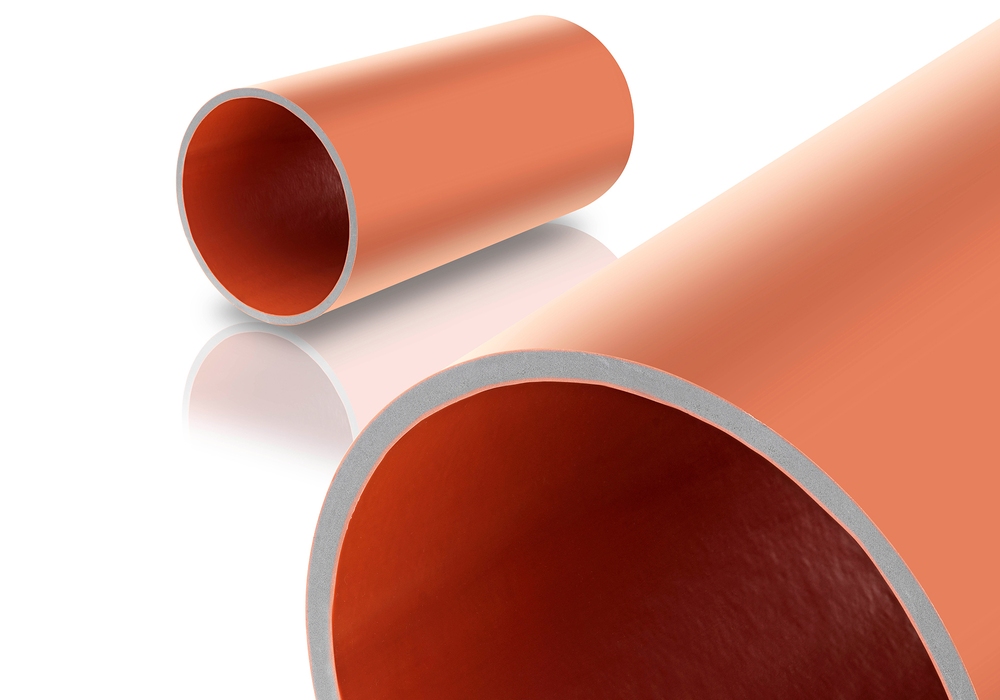

Sustainability often begins below the surface, in our cities’ pipe systems. This principle also applies to the production of PVC sewage pipes. At K 2025 in Düsseldorf, Germany (October 8–15), KraussMaffei Extrusion will showcase its newly developed 3-layer pipe head, designed to process up to 100% recycled material safely and reliably. With this innovation, the company underscores its commitment to resource conservation in pipe manufacturing while meeting the growing requirements of the circular economy. And for those making the journey from Australia or New Zealand, you won’t be alone; Headland Technology will be on the ground with representatives ready to meet and connect with ANZ local manufacturers.

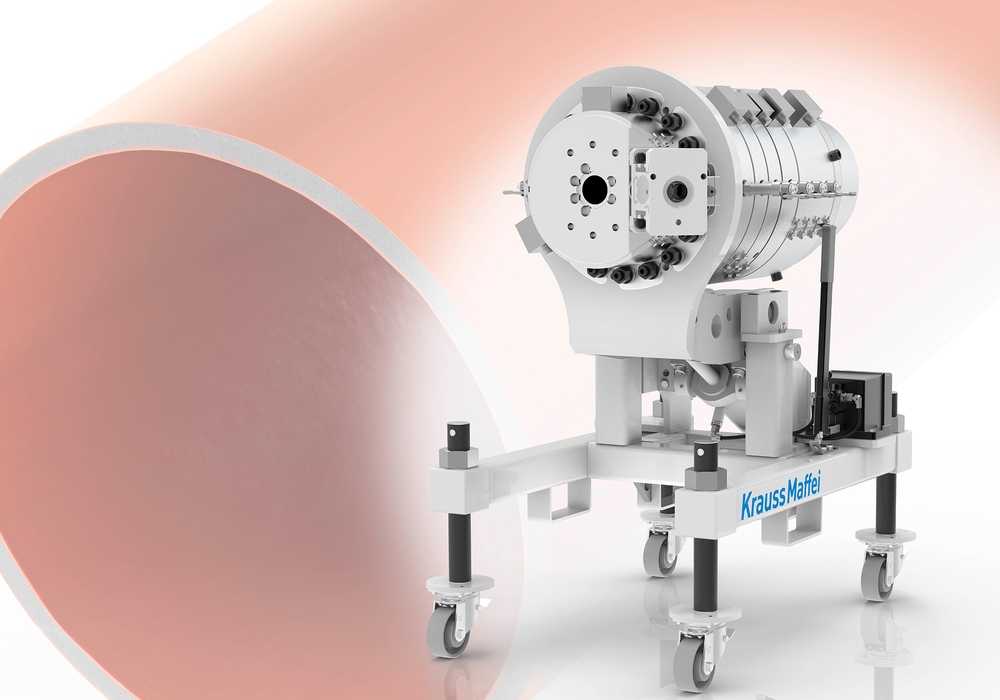

The KM-3L RK 42-HP is not an upgrade of an existing design but a completely new development, engineered and simulated from the ground up. With a throughput range of 400 to 1,200 kg/h and diameters from 110 to 250 mm, it is tailored for large-scale industrial applications.
Ralf Benack, CEO KraussMaffei Extrusion, says:
“With the new KM-3L RK 42-HP, we are presenting the most advanced 3-layer pipe head for PVC applications. Our customers benefit from economical, sustainable, and outstanding quality pipe production.”
At the core of the pipe head is a high-precision, patent-pending flow system with symmetrical material feed across all three layers. The innovative solution for the core layer uses a highly efficient 1-to-8 distribution, delivering short dwell times and reducing error susceptibility. This enables 100% recycled material to be processed reliably, whether the layer is foamed or compact, and regardless of whether in-house recycled or post-consumer material is used.
The two cover layers also provide efficiency and flexibility. While virgin material is commonly used, the design can also handle 100% recycled material.
The KM-3L RK 42-HP allows manufacturers to operate more economically.
Dr. Thomas Unger, Vice President Technologies at KraussMaffei Extrusion, says:
“Thanks to the largest process window on the market, long production runs with minimal downtime are achievable. At the same time, material costs are significantly reduced.”
As material costs typically account for the majority of production expenses, even small reductions can have a significant impact on profitability.
Spiderlines, fine marks on the inner pipe wall, are virtually eliminated through the new flow system. The optimised material flow prevents build-up and turbulence, ensuring smooth surfaces without streaks.
The design eliminates chrome plating and double compression entirely. This not only reduces production costs but also improves sustainability. Removing double compression geometry reduces thermal stress on material, simplifies cleaning, and enables faster tool changes.
The KM-3L RK 42-HP also delivers ease of use: cleaning and product changes are straightforward, reducing downtime and ensuring reliable operation.
With the KM-3L RK 42-HP, KraussMaffei Extrusion demonstrates how sustainability and performance can align. This innovation makes it possible to produce durable infrastructure products from recycled PVC while optimising cost efficiency.
Visit KraussMaffei at K 2025, Hall 15, Booth C24.
Looking for KraussMaffei equipment? You’re in luck. Headland Technology will have representatives at K 2025 in Düsseldorf, Germany, this October 8–15, ready to connect with manufacturers from across ANZ.
Whether you’re exploring new machinery options or require support for existing equipment, our team understands the unique challenges faced by plastics manufacturers in Australia and New Zealand. We’re not just about making the sale; we’re your long-term partners, supporting your equipment from day one through its entire operational life.
Connect with our Headland team at K 2025:
Can’t make it to Germany? No problem. Call us at 1300 138 285! We can help you find the right equipment from right here in Australia.
Let’s discuss how KraussMaffei equipment can drive your manufacturing forward.
