Article
What is Abrasivejet Cutting?
Tags:
Abrasivejet cutting technology provides higher hydraulic power at the nozzle and better jet stream control. With this combination, you will be able to accurately cut complex geometries and corners with efficiency and speed.
First finding their industrial use in the early 1970s and quickly gaining popularity as an alternative to costly knives and metal cutters, waterjets have the capability to work with pressures between 40,000 and 60,000 pounds per square inch (psi), and can cut through a range of materials from food products to cardboard.
Birth of the abrasivejet cutter
While waterjets were ideal for soft materials, they weren’t adequate to machine harder materials. It wasn’t until the 1980s when garnet abrasives were added to the water stream – and the abrasivejet cutting system was born.
Mixing the garnet through aspiration, the new abrasive laden stream was now able to cut harder materials such as titanium, aluminium, glass and ceramic while reducing noise and dust distractions.
Industries
OMAX waterjets have the power to revolutionise your machining process and efficiency servicing a variety of industries including:
Aerospace
Architecture
Education
Energy
Food Processing
Government
Medical
Transportation

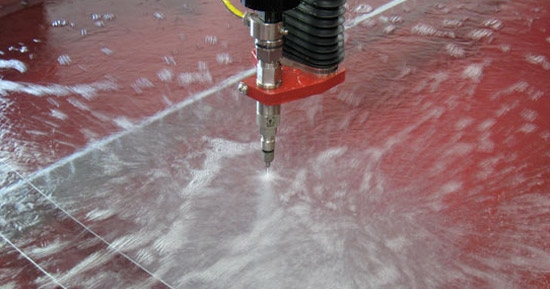

Maxiem Waterjet 1530
Advantages of your OMAX waterjet machine
Easy to use software suite
Smooth and precisely controlled cutting with the abrasivejet nozzle
OMAX technology guarantee
Technology
OMAX abrasive waterjets offer:
Fastest precision cutting in the industry due to direct drive plunger pumps
OMAX standard mixing tube has a 0.030″ (0.75 mm) inside diameter and is 4″ (10 cm) long
Features a smaller bore and longer length than the more common 0.040″ (0.35 mm) diameter by 3″ (7.5 cm) long tube used by most abrasivejet system manufacturers
Looking after your machine: Abrasive waterjet tips
Clean your nozzles
All abrasivejet systems use the same basic two-stage nozzle design where water passes through a small diameter jewel orifice forming a narrow jet and mixing with abrasives.
Regardless of the brand of nozzle, all nozzles must be kept clean when being overhauled. For maximum mixing tube life, a small ultrasonic cleaner should be used to ensure the nozzle body is free of all contaminants.
Treat water properly
Water quality and cooling is vital. Maintaining good quality water will ensure the longest mixing tube life. The quality of water used by any abrasive waterjet plays the most critical role in extending the life of critical components such as nozzle orifices, on off valves, seals, check valves and plungers.
To perform high quality cutting, the orifice needs to create a high quality jet that is directed through the center of the mixing tube. Contaminates in the water can create a multitude of problems for the orifice.
A by product of increased pressure is heat, so cooling your water down is also important as warm water can cause more wear on the pump. OMAX’s Chiller Systems are a way to keep your temperature down.
