The XXL Solution for Tube Cutting
Tags:

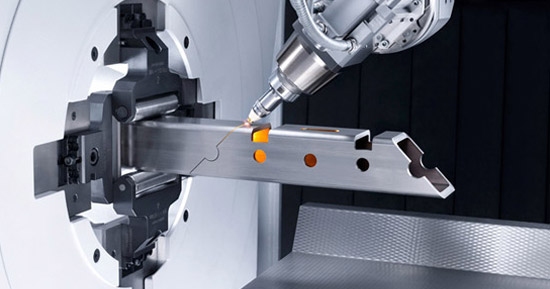

TRUMPF TruLaser Tube 7000
This flexible high-end machine allows you to process a wide range of parts and gives you access to new applications in the field of laser tube-cutting. Without any productivity loss, this machine is capable of cutting tubes and profiles measuring up to 250 mm in diameter with wall thicknesses of up to 8 mm in mild steel.
With the TruLaser Tube 7000, you will enjoy:
Productivity
Fully automatic machine settings help minimize downtime
Stepped rollers automatically adjust to the diameter of each workpiece
Large waste bin is emptied automatically
FocusLine sets the focus of the laser and automatically adjusts it to suit the type and thickness of material being processed
With a maximum laser output power of 3,600 watts, you can process parts even faster
The high cutting speed guarantees high productivity, even during bevel cuts
Quality
Self-centering clamp chucks adapt to different tube geometries
Consistent, high quality is assured
Components are unloaded gently
A specially designed bundle magazine protects the workpieces – for example it prevents damage to the surface of stainless steel tubes when they are fed into the machine
Perform quality bevel cuts up to 45 ° in mild steel and for many applications in stainless steel and aluminium
Flexibility
Capable of processing mild steel tubes with diameters up to 250 mm and wall thicknesses up to 8 mm
The flexible part-removal station sorts the finished parts onto a movable conveyor-table, into wire cages or into transport containers, as required
Automatic machine settings reduce production costs, even for small batches
The swivel-action transport tracks can be used for small batches and custom profiles
User friendly
Control and operating system designed with the machine operator’s needs in mind
The integrated touchscreen control panel can be moved and swiveled
