The new TRUMPF TruPrint 1000 introduced at Formnext 2022

Tags:

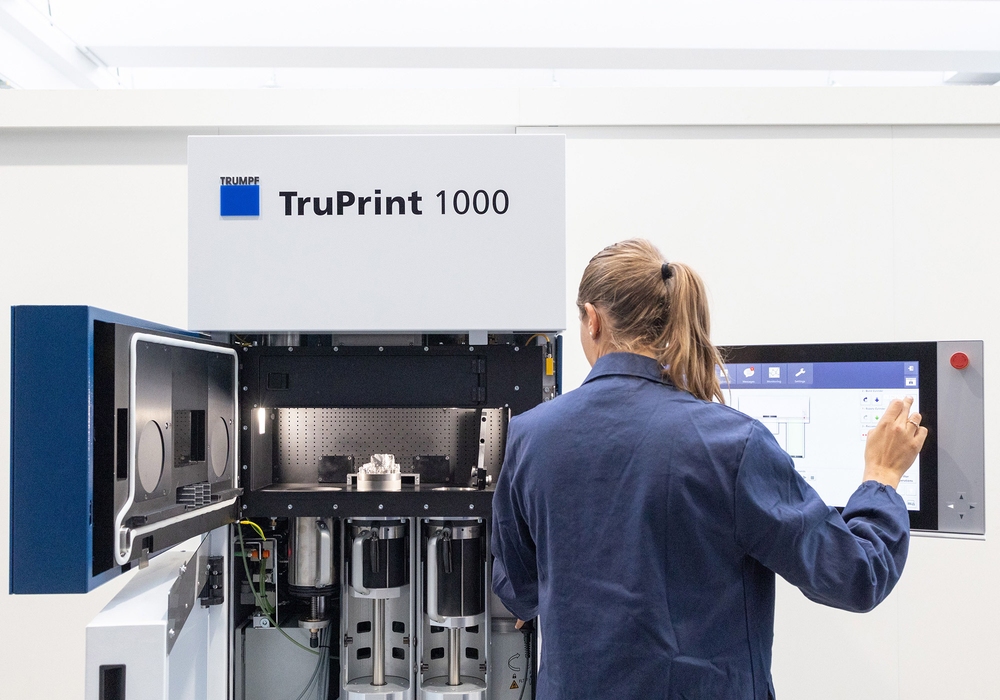

TRUMPF has equipped the new TruPrint 1000 for additive series production. “Thanks to smart automation, the new machine is two times faster than its predecessor and is ideally suited for series production, for example in the dental industry or medical technology,” says Mirko De Boni, Product Manager at TRUMPF. The high-tech company showcased the TruPrint 1000 at Formnext, the leading trade show for additive manufacturing in Frankfurt.

Improved series production with multiplate function

Users now can take advantage of Multiplate function and make better use of the TruPrint 1000 for series production. Operators can stack up to four build plates on top of each other in the build cylinder, and the system prints components on them one after the other. “The TruPrint 1000 can produce all night without a worker having to be present.

Users save a lot of time and therefore costs,” says De Boni. Only about 80 centimetres wide, the machine footprint would fit in very little space and can pass through a standard door or be placed in small production halls. Clients can have several machines producing side by side in parallel and speed up their series production even further.

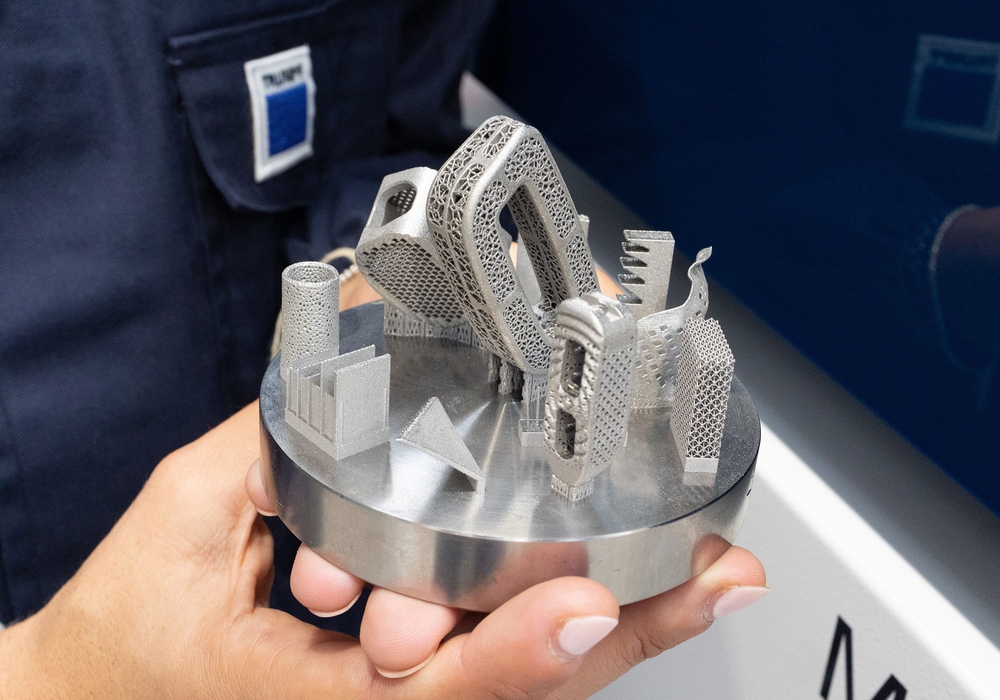

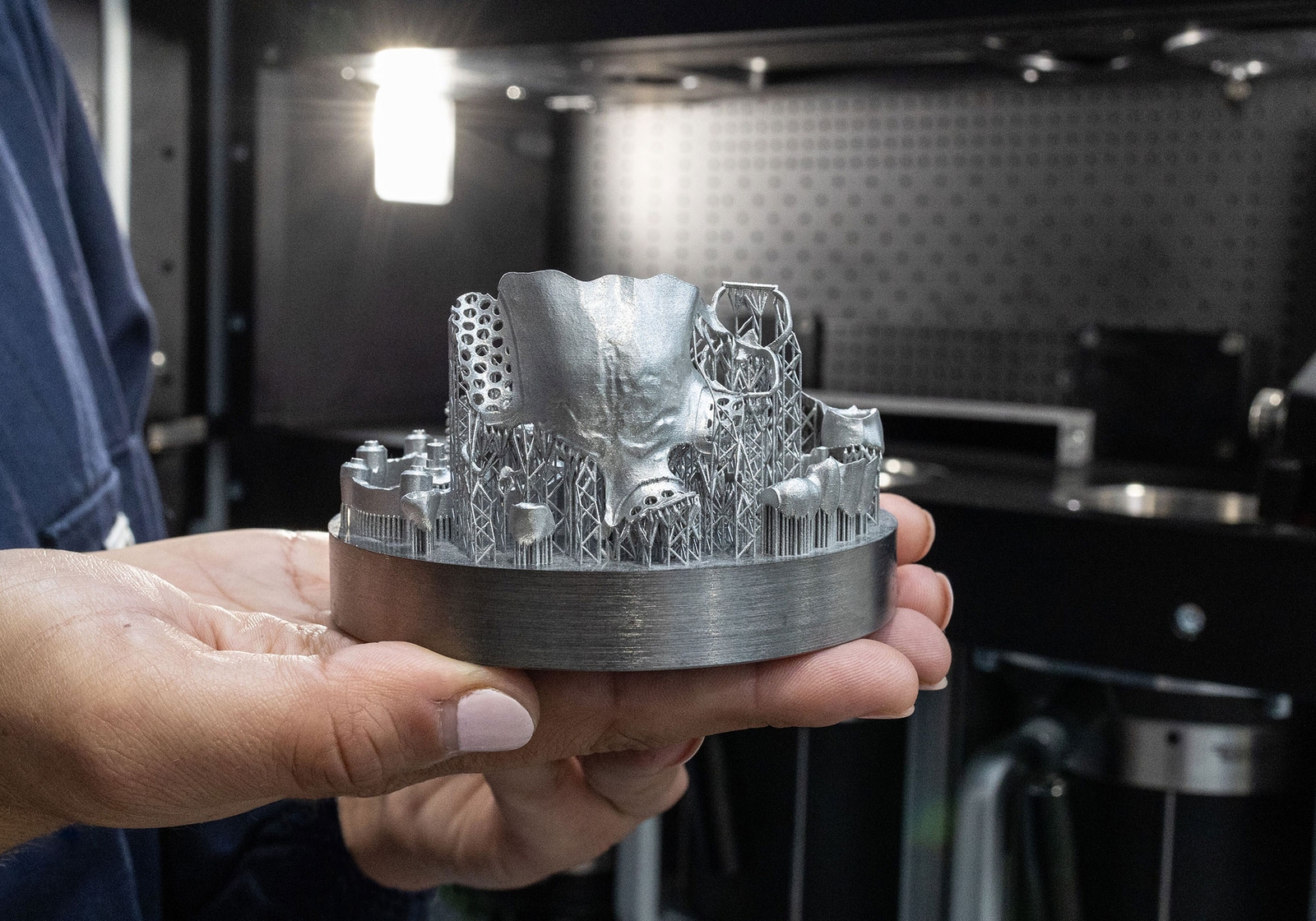

The TruPrint 1000 is a true win for the Dental industry as it can produce 1000 dental prostheses, i.e. crowns, bridges and also cast models, from the alloys cobalt chrome or titanium. A suitable system for medical technology manufacturers or prototype construction in many other industries.

Speed-up production with the exchange cylinder principle

With an available exchange kit, the operator can quickly and easily change the build, powder and overflow cylinders of the TruPrint 1000. The filters are easily accessible on the side of the machine for quicker changeability. “This means a material change, such as from cobalt chrome to titanium, can be completed in just 15 to 20 minutes,” says De Boni.

Brushes and gloves are integrated into the machine. Without opening the door, the user can clean the additively manufactured components and unpack the build job. “This is a big advantage. If powder swirls up, machine operators can’t contaminate themselves with the material,” says the product manager.

Faster and reliable system due to improved gas flow

TRUMPF’s also improved the flow of the shielding gas during the production process. “Thanks to the primary and secondary flow, the work area remains clean even after several build jobs and the protective glass does not become contaminated. This is also true when processing tool steel, which is actually prone to heavy fuming,” says De Boni. If the protective glass does get dirty, the machine operator can remove and clean it following just a few easy steps.

The high-level gas flow also ensures a consistent production process, as predefined laser power always reaches the powder. Thanks to the clean working environment, users can apply higher layer thicknesses. This increases the productivity of the system and improves the quality of the additively manufactured components.

TruPrint 1000 also prints with two lasers

Due to the Multilaser variant system which has two lasers the TruPrint 1000 is more reliable and works much more efficiently and quicker. The special feature: Both lasers can process the entire build plate. “With two lasers we can improve the productivity of this machine even further,” says De Boni.

The TruPrint 1000 also uses the so-called beam expander to automatically adjust the spot diameter of the laser to the particular build job. The spot diameter is 55 or 80 micrometres, depending on the application. A wider spot permits higher productivity, while the 55-micrometre spot can be used when special powders need higher energy density.
