CNC lathes are machine tools used for precision turning and boring of parts. There are two main types of lathes – fixed head lathes and sliding head lathes. While they share some basic operating principles, there are key differences in the way they process materials.

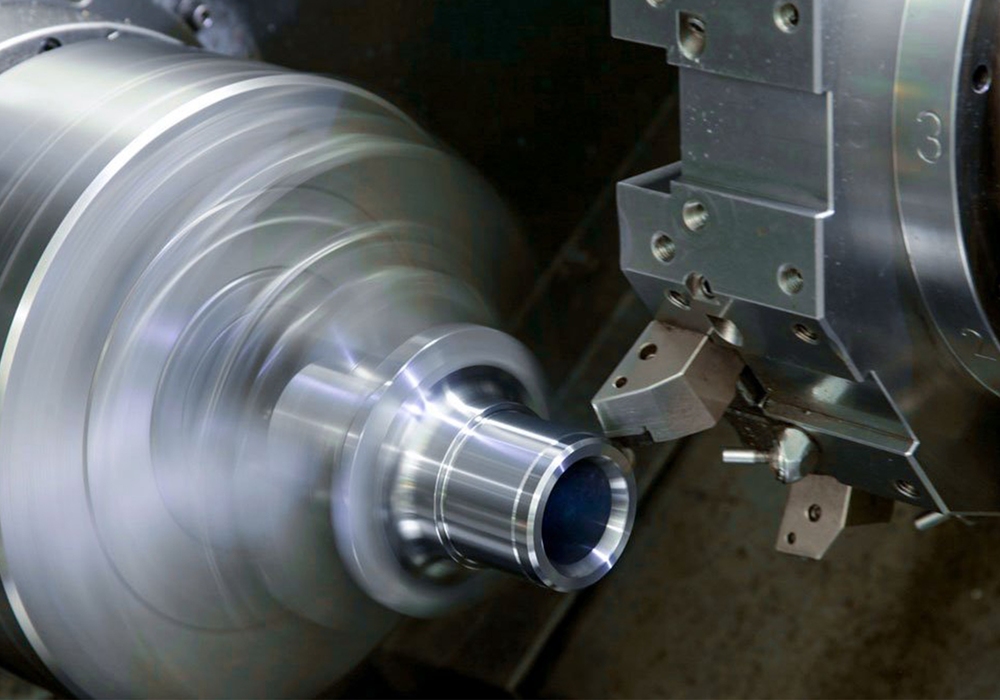

Fixed Head CNC lathes
In a fixed head lathe, the spindle headstock remains stationary during operation. The maximum turned length is generally limited to 3-4 times the diameter of the workpiece. For parts with a higher length-to-diameter ratio, issues like chatter and vibrations can occur. The metal removal rates are influenced by the amount of material extending from the chuck. The larger the overhang, the slower the cutting parameters and the smaller the depth of cut must be to avoid deflection.
Fixed head lathes can struggle with very small diameter parts due to the potential deflection of the workpiece. They are however generally suitable for a wide range of small to larger-diameter workpieces and can handle rough bar stock relatively well compared to sliding heads. Applications well-suited to fixed head lathes include shorter, stouter components across industry sectors including automotive, aerospace, oil/gas, and general parts manufacturing.

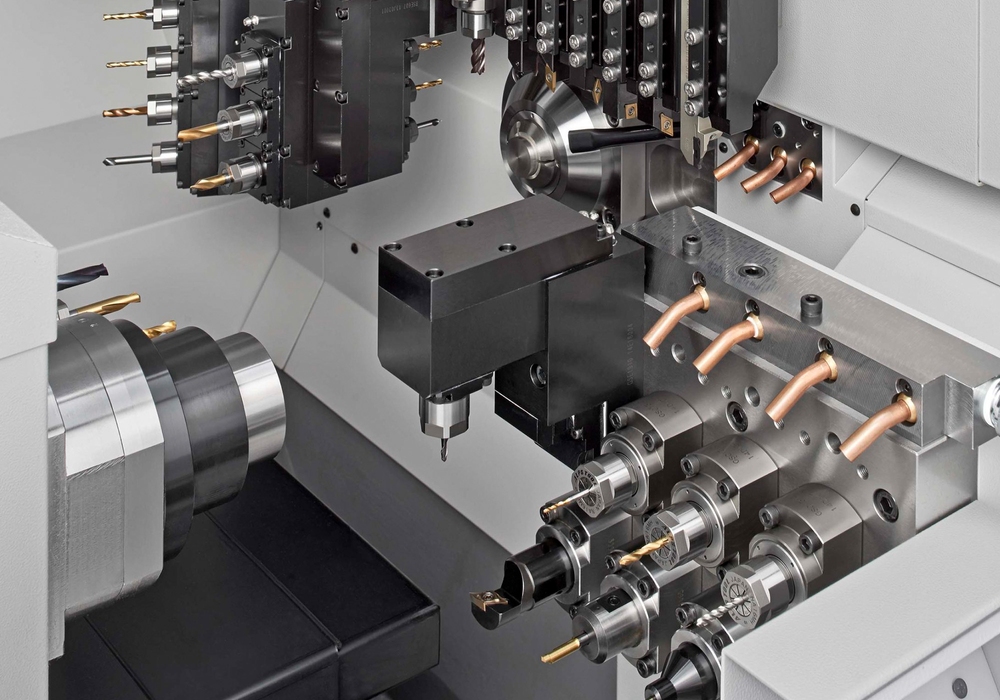

Sliding head CNC lathes
The spindle headstock can slide back and forth on linear rails or guideways. This sliding motion, combined with a guide bush that supports the newly turned workpiece, allows for turning extremely long, slender components without requiring a steady rest. The guide bush support and rigidity enable very high metal removal rates in a single pass. Parts can be made much longer than the normal 4 * diameter ratio, that a fixed head is limited to, as the part “grows” out of the guide bush.
Sliding head lathes excel at producing long, slender, and very precise cylindrical components across industry sectors like aerospace, medical, electronics, firearms, and anywhere small precision-turned parts are required.
The maximum bar diameter is limited (max diameter normally under 40mm). Sliding head machines as production equipment also require high-quality bar feed units to support and maintain tight tolerances on parts. The sliding-head design provides a different set of specialised capabilities ideal for small-diameter, high-precision work on long cylindrical components and shafts. The ideal machine depends on the specific application and workpiece requirements.
Conclusion
Both fixed-head and sliding-head CNC lathes play vital roles across manufacturing sectors requiring precision-turned components. Fixed head lathes offer great versatility in handling a wide range of diameters and materials, making them suitable for general manufacturing of parts with lower length-to-diameter ratios.
For applications demanding extremely long, slender, high-precision components with relatively small diameters, the sliding head design with guide bush support provides distinct advantages, maintaining tight tolerances and high production rates.
Ultimately, whether a fixed head or sliding head CNC lathe is the optimal choice depends on the specific workpiece requirements. Manufacturers must evaluate the expected sizes, lengths, materials, and precision needs of their turned parts. Those requiring short, stout components may find fixed heads more cost-effective, while those in industries like medical, aerospace, and electronics with needs for long, small-diameter components will likely benefit from the specialised sliding head design.
As with any manufacturing operation, choosing the right machine tool for the application can optimise workflow, part quality, and overall productivity. The distinct strengths of fixed-head and sliding-head CNC lathes allow shops to make judicious investments aligned with their product mix.
